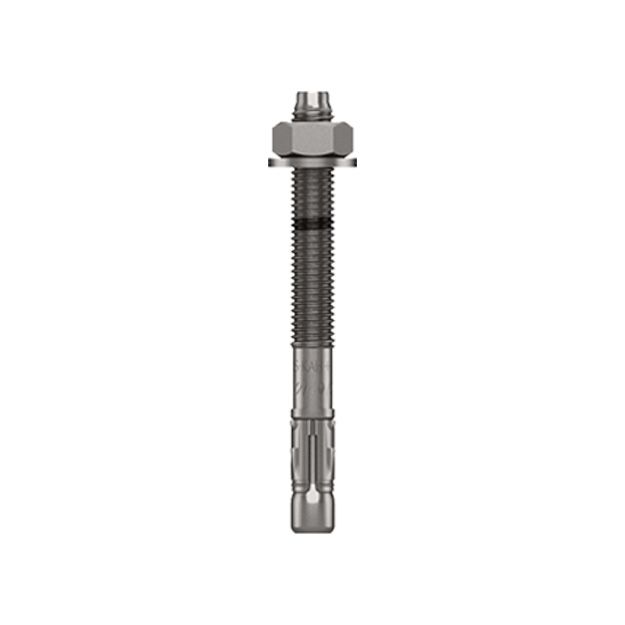

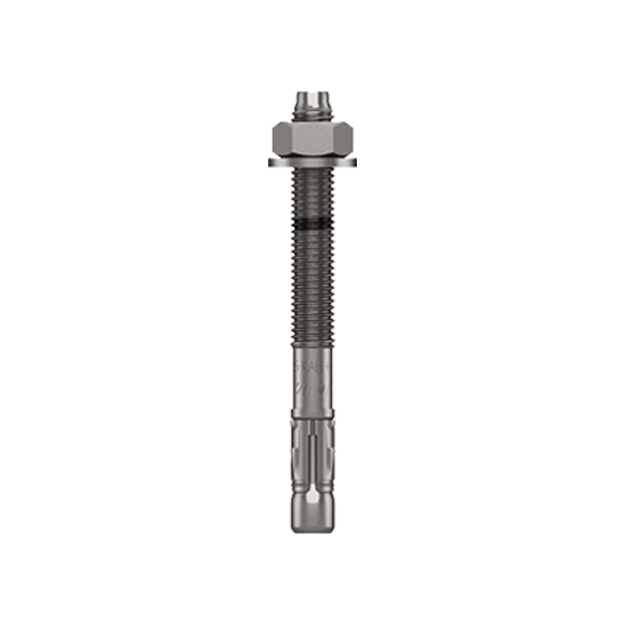

Ejot BA-E Plus Through Bolt - Stainless Steel

Description

The Ejot BA-E Plus Throughbolt is an A4 stainless steel torque controlled expansion anchor for fixations in cracked and non-cracked concrete.

Advantages

• A4 stainless steel
• HCR high-grade steel
• Approval for concrete, option 1
• Fire resistance classes F30, F60, F90, F120
• Completely new design
• M10 and M12 with 2 different anchorage depths
  M10: 40 mm and 60 mm
  M12: 50 mm and 70 mm
• Colored setting depth marking on the thread
• Anchor length letter code marked on the bolt head
• Installation also in thinner concrete than today with M8 and M10
  M8:   80 mm vs. 100 mm
  M10: 100 mm vs. 120 mm
• Installation torque achieved with 30 – 50% fewer revolutions

Applications

• For embedment in cracked and non-cracked concrete  ≥ C20/25
• Also suitable for natural stone
• Dry internal conditions
• Wet areas
• Outdoors, including in industrial atmospheres and coastal environments
• For embedment of medium-heavy to heavy fixings suchas pillars, metal structures and wooden structures
• For pre-, push-through and distance installations
