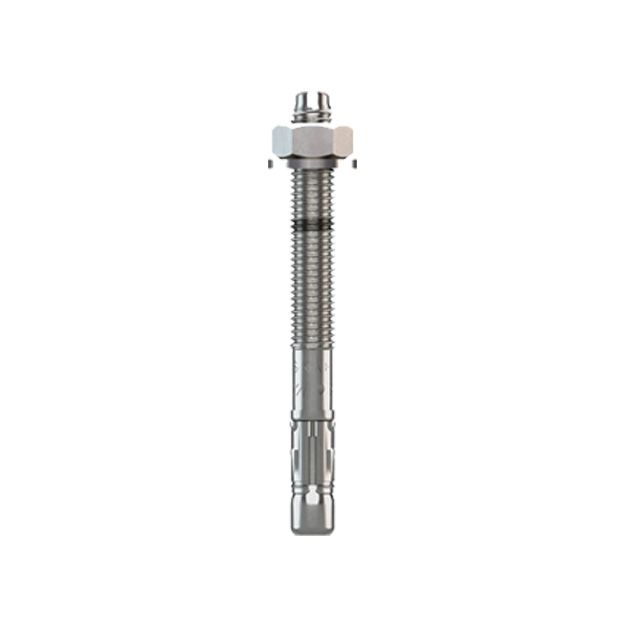

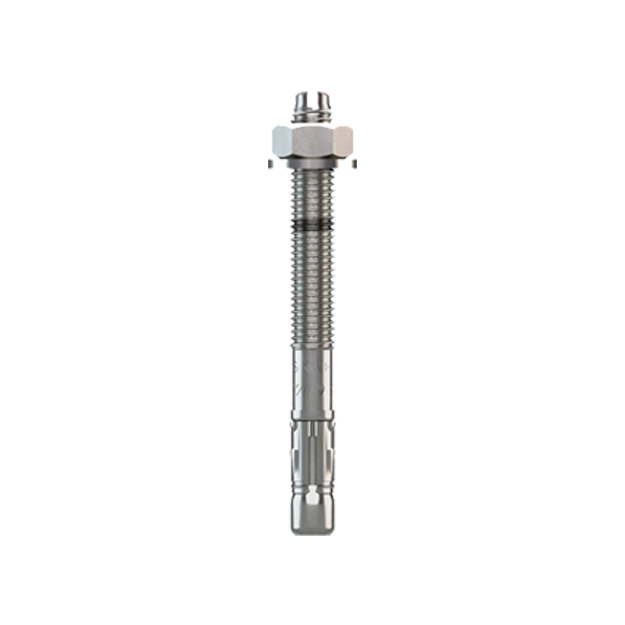

Ejot BA-V Plus Through Bolt - Carbon Steel

Description

The Ejot BA-V Plus Throughbolt is a carbon steel torque controlled expansion anchor for fixations in cracked and non-cracked concrete.

Advantages

• Galvanized zinc-plated steel
• Approval for concrete, Option 1
• Fire restistance classes F30, F60, F90, F120
• Completely new design
• M10 and M12 with 2 different anchorage depths
  M10: 40 mm and 60 mm
  M12: 50 mm and 70 mm
• Colored setting depth marking on the thread
• Anchor length letter code marked on the bolt head
• Installation also in thinner concrete than today with M8 and M10
  M8:   80 mm vs. 100 mm
  M10: 100 mm vs. 120 mm
• 30 – 50% fewer turns for the assembly torque

Applications

• For embedment in cracked and non-cracked concrete ≥ C20/25
• Also suitable for natural stone
• Dry indoor areas
• For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures
• For pre-, push-through and distance installations
• Seismic approval category C2 (M10-M16)
