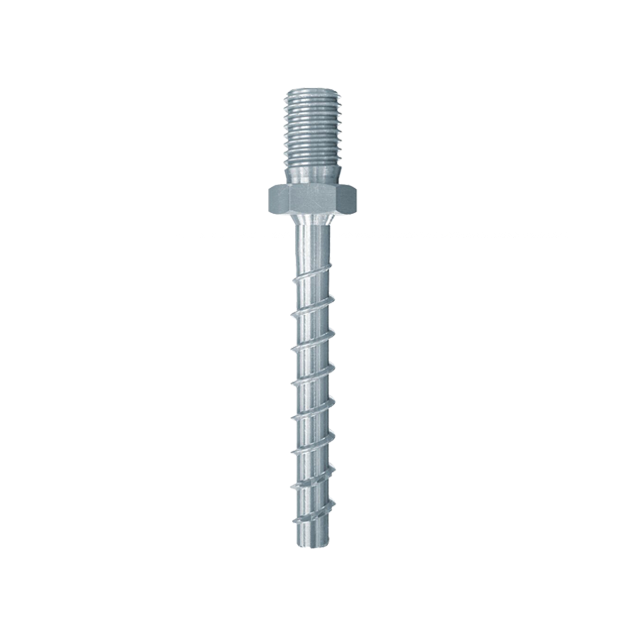

Fischer UltraCut FBS II 6 M8/M10

SKU: UltraCutFBSII6M8/M10
Reset
*
*
*
Call for pricing
+ - 1
The fischer UltraCut FBS II 6 M8/M10 is made of zinc-plated steel with a hanger bolt (M8/M10-outer diameter). When the concrete screw is screwed into the drill hole using an impact driver, the thread flanks cut deep into the concrete, thus ensuring top load-bearing capacity. The low drilling effort saves time in the case of multiple fixations.

Advantages

  • The first concrete screw with diameter 6 and variable embedment depths enables high flexibility and a precise adaption on the loads
  • No drill hole cleaning needed for vertical installation (ceiling and floor). Drill 3x hole diameter deeper for floor fixings
  • The hanger bolt enables the easy and suitable application of pipe clamps and connecting elements
  • The approved adjustment allows the screw to be unscrewed twice to place a maximum of 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again
  • Maximum flexibility when mounting threaded rods or connecting elements
  • Fire resistance class R 120

Applications

For fixing pipeline routes, suspension for individual pipes, suspended mounting rails, prestressed concrete hollow core ceilings, ventilation ducts.

*
*
*
